39mm Mining Rock Split Set Friction Bolts Mining Roof Support For Mine Seam Pipe

Name: 39mm Mining Rock Split Set Friction Bolts Mining Roof Support For Mine Seam Pipe
Brand: Minetech
Price: 3 USD

Quality 39mm Mining Rock Split Set Friction Bolts Mining Roof Support For Mine Seam Pipe for sale

Brand Name : Minetech

Model Number : 42mm Underground Friction Bolt

Certification : ISO9001

Place of Origin : China

MOQ : 1pc

Price : $3-$15

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 30000 pieces per month

Delivery Time : 15-30 days

Packaging Details : 1/carton

Product Name : underground Friction Bolt

Key Words : friction bolt

Model Type : 47mm

Color : Customized

Package : wooden case

Processing Type : Forging

Machine Type : rock drill rig

Application : Bolting, drifting • Bench drilling • Production drilling

Port : Tianjin qingdao

Contact Now

39mm Mining Rock Split Set Bolt FRICTION ROCK ANCHOR BOLTS Roof Support for Mine Seam Pipe

Product Description

Split set is also know as friction bolt.
It is a rock support method used in underground mining and tunnel construction.The bolt consists of a high strength steel bolt with a ''U'' shape cross section and a longitudinal groove.
To install a Split Set bolt, a hole is made in the rock with a diameter slightly smaller than the bolt’s diameter, and the Split Set is inserted into it. As the bolt is pushed into the rock, the “U” shaped cross-section reduces and adjusts to the shape of the borehole. This expansion creates friction between the Split Set and the surrounding rock along its entire length, providing strong resistance to displacement

Product Specifications

Item no	Dimeter	Steel	Min Yield	Plate size
MF33	33mm	2.5mm	78KN	1501504.0
MF39	39mm	2.5mm	88KN	1501504.0
MF42	42mm	2.5mm	95KN	1501504.5
MF47	47mm	3.0mm	125KN	1501505.0

Advantages

1. Simple to install, just bump to finish; 2. No anchoring agent is required; 3. High friction between anchor and rock; 4. High shear and tensile strength; 5. Equipped with high-strength pallets, the pallets are subjected to uniform force; 6. Radial and axial directions can provide timely support.

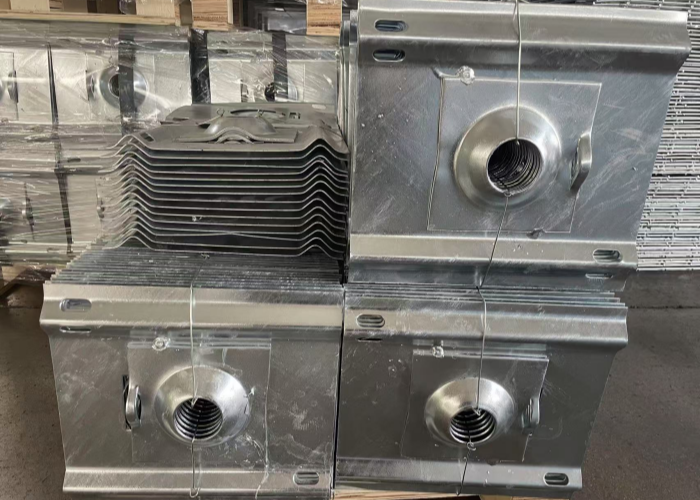

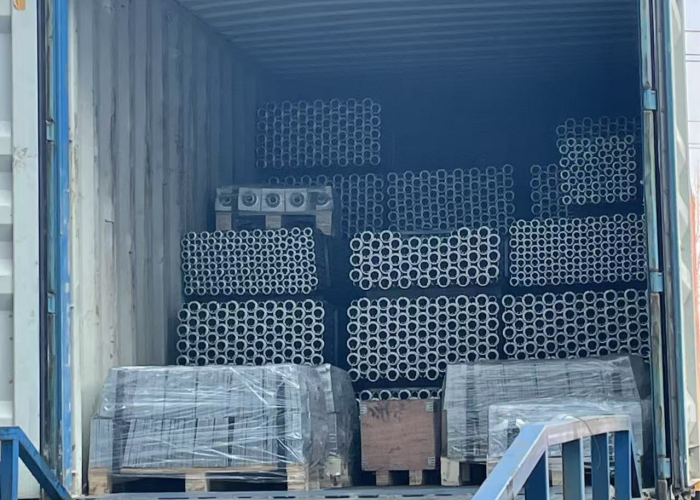

Product Images

39mm Mining Rock Split Set Friction Bolts Mining Roof Support For Mine Seam Pipe

Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

Order Information

Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order: Within 10 days supplied from stock
Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Quality Control: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
