42mm Underground Friction Bolt Friction Stabilizer For Metal Mine Split Sets

Name: 42mm Underground Friction Bolt Friction Stabilizer For Metal Mine Split Sets
Brand: Minetech
Price: 3 USD

Quality 42mm Underground Friction Bolt Friction Stabilizer For Metal Mine Split Sets for sale

Brand Name : Minetech

Model Number : 42mm Underground Friction Bolt

Certification : ISO9001

Place of Origin : China

MOQ : 1pc

Price : $3-$15

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 30000 pieces per month

Delivery Time : 15-30 days

Packaging Details : 1/carton

Product Name : underground Friction Bolt

Key Words : friction bolt

Model Type : 42mm

Color : Customized

Package : wooden case

Processing Type : Forging

Machine Type : rock drill rig

Application : Bolting, drifting • Bench drilling • Production drilling

Port : Tianjin qingdao

Contact Now

42mm Underground Friction Bolt friction stabilizer for Metal Mine Split Sets

Product Description

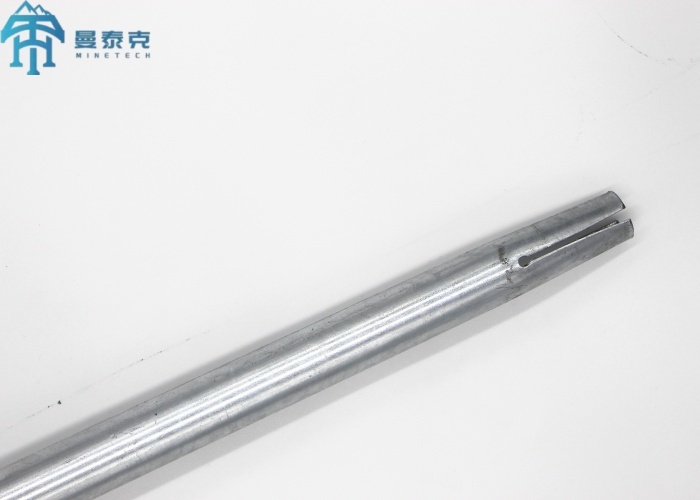

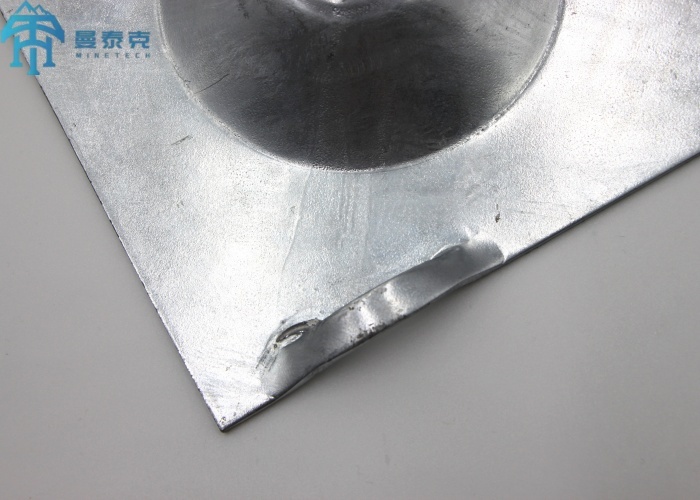

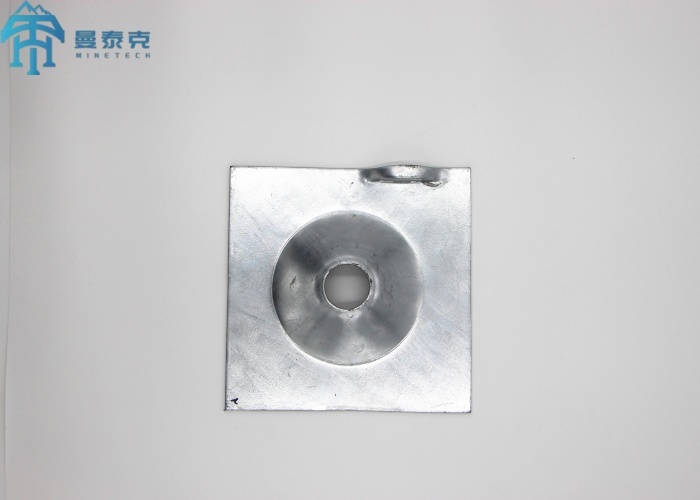

Friction stabilized anchor is a new type of anchor with full-length anchorage and active reinforcement of surrounding rock. It consists of anchor rods and trays. the anchor rod is made of high-strength steel pipe with longitudinal slits. when it is installed in a borehole slightly smaller than the diameter of the pipe, it can immediately exert radial pressure on the entire length of the borehole and prevent the surrounding rock from slipping. together with the supporting force of the pallet, it puts the surrounding rock in a three-way force state and achieves rock stabilization.

Product Specifications

Item no	Dimeter	Steel	Min Yield	Plate size
MF33	33mm	2.5mm	78KN	1501504.0
MF39	39mm	2.5mm	88KN	1501504.0
MF42	42mm	2.5mm	95KN	1501504.5
MF47	47mm	3.0mm	125KN	1501505.0

Product Images

42mm Underground Friction Bolt Friction Stabilizer For Metal Mine Split Sets

Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

Order Information

Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order: Within 10 days supplied from stock
Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Quality Control: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
